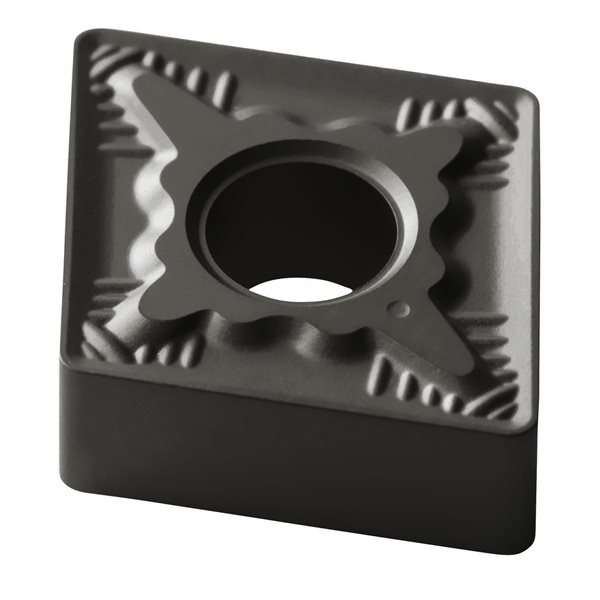

CNMG 432-QM GP1105

Versatile all-round geometry insert for medium turning in all types of steel

• Variable land balances sharpness and strength
• Smooth chip formation
• Strengthening ribs extend tool life
• Low cutting forces with high edge strength
• Wide application range – well suited for medium to semi-roughing applications
• GP1105: Double-coated MT-CVD grade with exceptional coating adhesion properties
• Extremely hard gradient-sintered substrate with unsurpassed wear resistance, even at elevated operating temperatures
• Our highest wear resistance grade for steels

Item Specifications

• ISO Description
  CNMG 120408-QM GP1105
• Insert Shape
  C – 80° Diamond
• Insert Size d (IC)
  1/2
• Edge Length l
  .508
• Thickness s
  3/16
• Corner Radius r
  1/32
• Chipbreaker
  QM – Medium Turning Steel
• Grade
  GP1105 – CVD for Steel
• Cutting Speeds, ft/min
  980 (560-1410)
• Feed per Rev, inches
  .009 (.006-.016)
• Depth of Cut, inches
  .080 (.020-.187)
