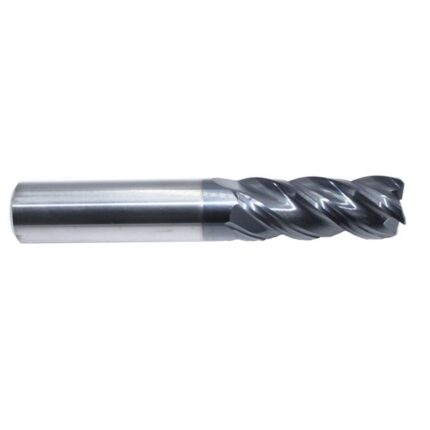

1 Standard Length 4 Flute Changeling Vari Endmill
1 Stub Length 4 Flute Changeling Vari Endmill
1/16″ 4 Flute Stub Carbide end mill
| Diameter - Fractional Size (D) | 1/16 |
| Diameter - Inch (D) | 0.0625 |
| Length of Cut - Inch (Lc) | 0.125 |
| Length of Cut - Specification | REGULAR |
| Overall Length - Inch (L) | 1.5 |
| Shank Diameter - Inch (d) | 0.125 |
| Substrate | Carbide |
| Helix Angle - Degree | 30 |
| Helix Direction | RH |
| Mill Type | Single End |
| Number of Flutes | 4 |
| Surface Treatment | BRIGHT |
| Weldon Flat | No |
| Cutting Direction | RH |
| Cutting Type | Center Cutting |
| Cutting Diameter Tolerance - Inch | +0 / -0.002 |
| Coolant Thru | No |
| End Cut Type | Square End |
| Notes | Other coatings available upon request. |
1/16″ 2 Flute Regular Carbide end mill
1/16″ 2 Flute Stub Carbide end mill
1/16″ 4 Flute Regular Carbide end mill
1/2 Beast Alu-Rough Stub Length 2 Flute 45 Degree Endmill

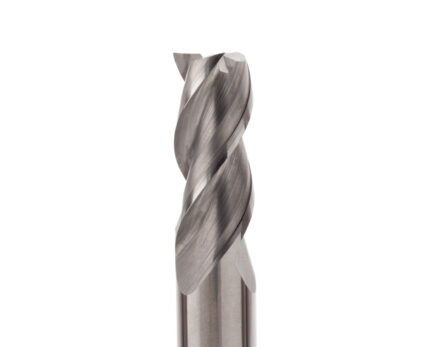

1/2 Standard Length 3 Flute Mirage 45 Degree Helix ALU+Finish
